application

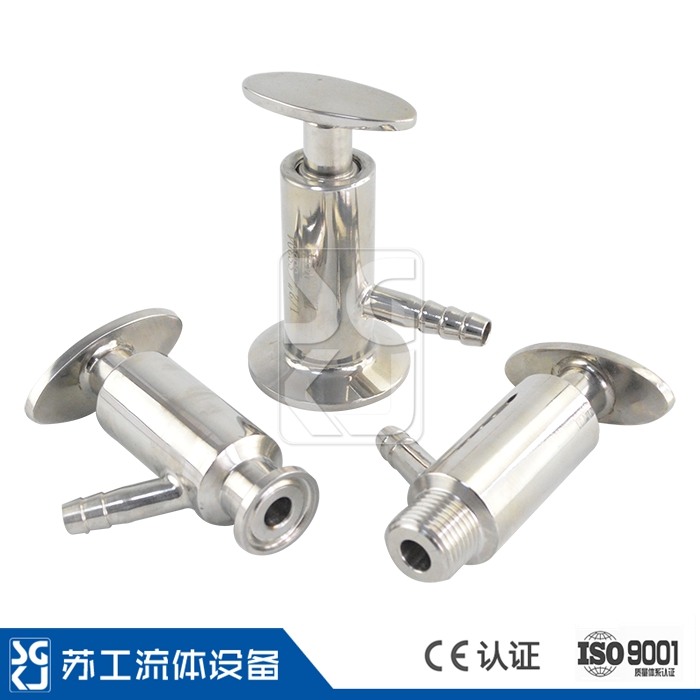

   The valve is used for sample collection of materials in tank equipment or pipelines, and is widely used in food, brewing, beverage, dairy products, toothpaste cosmetics, biopharmaceuticals and other industries.

Technical Parameters

◆Specifications: 1/4"~1/2" DN8~DN15

◆Connection method: welding, clamp, thread

◆Maximum working pressure: ≤10bar

◆Working temperature: -10 ° C to 120 ° C

◆Contact with material: SS304/SS316L

◆Inside surface contact product: Ra≤0.6μm

◆Sealing: SI, EPDM, FPM

working principle

Turn the handwheel counterclockwise, the spool and body thread drive the poppet, the valve opens; turn the handwheel clockwise, the spool and the valve body thread drive the lower spool, the valve closes.
